1376388-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1376388-1
Datasheet:
Description:

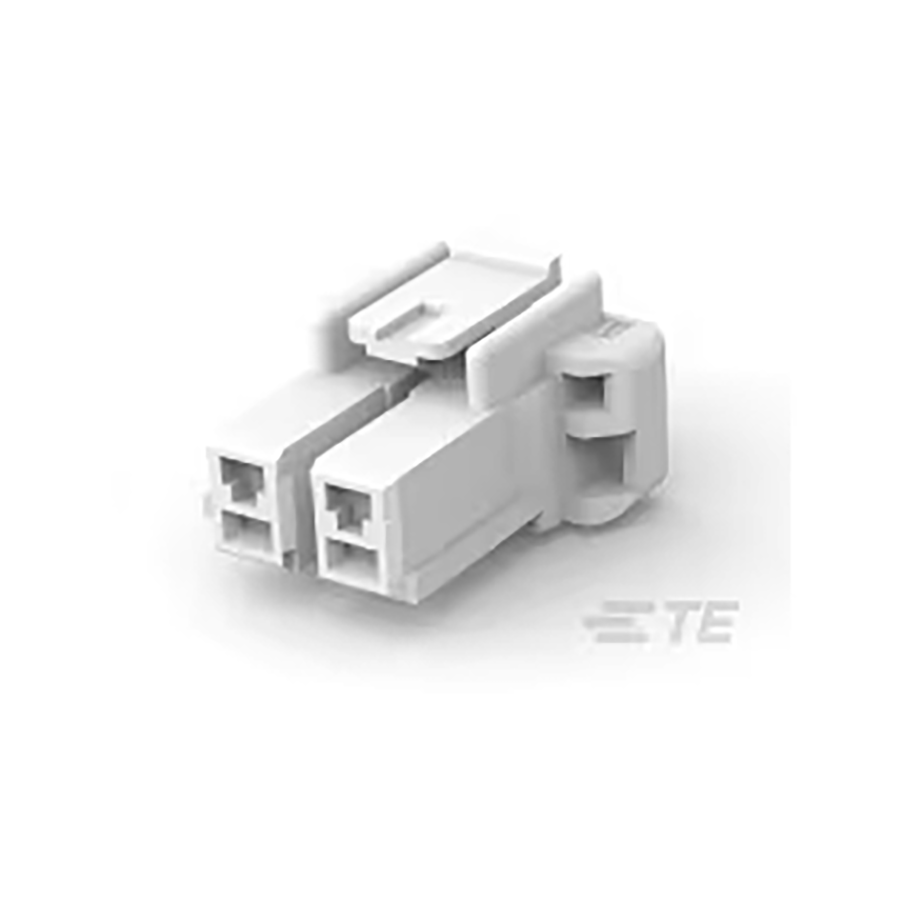

Headers and Wire Housings Cable, Free Hanging Socket Number of Positions:2 Pitch:5 mm
| Parameter | Value |
|---|---|
| Length | 15.0114 mm |
| Width | 16.2052 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Height | 9.6 mm |
| Packaging | Bulk |
| Depth | 16.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Pitch | 5 mm |
| Current Rating | 10 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Straight |
| Operating Supply Voltage | 300 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 2 |
| ELV | Compliant |
| Connector Type | Socket |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Fastening Type | Latch |
| Connector System | Wire-to-Board |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 300 V |
| Contact Current Rating | 10 A |
| Wire Gauge (Max) | 24 AWG |
| Wire Gauge (Min) | 16 AWG |
| Housing Color | Natural |
| Insulation Diameter | 3.1 mm |
| Number of Power Positions | 0 |
| Number of Signal Positions | 0 |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 1554
Distributors
pcbx
pcbxUnit Price$0.09773
Ext.Price$0.09773
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09773 | $0.09773 |
| 10 | $0.08914 | $0.89140 |
| 50 | $0.08131 | $4.06550 |
| 100 | $0.07638 | $7.63800 |
| 500 | $0.07175 | $35.87500 |
| 1000 | $0.06740 | $67.40000 |
| 3000 | $0.06331 | $189.93000 |
| 5000 | $0.06157 | $307.85000 |
| 10000 | $0.05988 | $598.80000 |
